| General | ||
| Dimensions | Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″) | |
| Weight | Approx. 140.5 g (0.31 lb.) | |
| Pan/Tilt/Rotation | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
|
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25% | |
| Power Consumption | Max. 2.7 W | |
| Camera | ||
| Image Sensor | 2 MP CMOS | |
| Electronic Shutter Speed | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s | |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| IR Distance | 30 M | |
| Lens | ||
| Lens Type | Fixed Camera Focal Lens | |
| Focal Length | 2.8 mm fixed focal lens | |
| Video | ||
| Resolution | 1920 × 1080 resolution | |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC | |
| Video Output | Video OutputSwitchable TVI/AHD/CVI/CVBS | |
| Day/Night | ICR | |
| BLC Mode | Yes | |
| Noise Reduction | 2D DNR | |
| Warranty | ||
| Warranty | 01 year warranty | |
Hikvision DS-2CE76D0T-ITMF 2 MP Indoor Fixed Turret Camera
Key Features
- Model: DS-2CE76D0T-ITMF
- 2 MP, 1920×1080 Resolution
- 2.8 mm Fixed Focal lens
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- EXIR 2.0 Smart IR, up to 30 m IR distance
specifications
Description
Hikvision DS-2CE76D0T-ITMF 2 MP Indoor Fixed Turret Camera
Hikvision DS-2CE76D0T-ITMF is a 2 MP Indoor Fixed Turret Dome shaped Security Camera. The Image Sensor used is a 2 MP CMOS with a PAL/NTSC signal system. The supported Resolution is 1920 X 1080 Pixels with a frame rate of TVI: 1080P@30fps, 1080P@25fps; CVI: 1080P@30fps, 1080P@25fps; AHD: 1080P@30fps, 1080P@25fps. The Video Output Switchable is in 4 modes they are TVI/AHD/CVI/CVBS. The Minimum illumination is 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR. As for the Shutter Time, the readings are PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s; Lens 2.8 mm, 3.6 mm, 6 mm fixed lens. For the Field of View, The readings are 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°. It supports an M12 Lens Mount. It also has an ICR sensor for Day and night cycling with a Digital WDR. For the Power Supply, it is 12 VDC ± 25% with a Power Consumption of a Maximum of 2.2 watts. The Angle Adjustment Pan readings are 0° to 360°, Tilt 0° to 75°, Rotation: 0° to 360°. The supported Modes include STD/HIGH-SAT with AGC, Day/Night Mode, Auto/Color/BW (Black and White), White Balance Auto/Manual, AE (Auto Exposure) Mode DWDR/BLC/HLC/Global, 2D DNR Noise Reduction, For function, it has Brightness, Sharpness, Smart IR Interface. The Infra-Red Range is Up to 20 m. Hikvision DS-2CE76D0T-ITMF 2 MP Indoor Fixed Turret Camera offers a 1-year warranty.
Reviews (0)
You must be logged in to post a review.
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

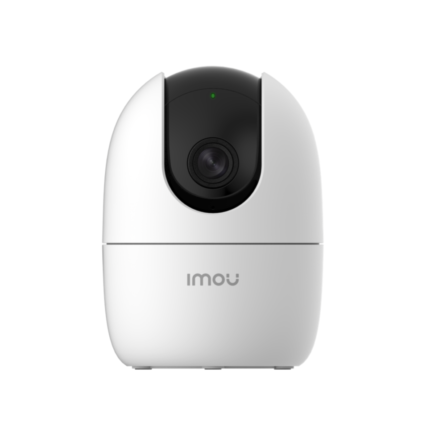

2MP A Series Wi-Fi Pan/Tilt Network Camera(A22)
