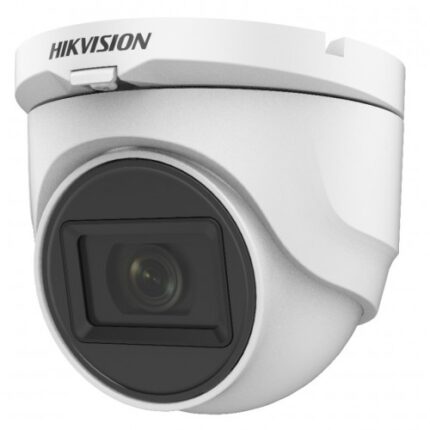

| General | ||
| Dimensions | Φ 70 mm × 137.8 mm (Φ 2.76″ × 5.43″) | |
| Weight | Approx. 150 g (0.33 lb.) | |
| Pan/Tilt/Rotation | Pan: 0 to 360° Tilt: 0 to 90° Rotation: 0 to 360° |
|
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25% | |
| Power Consumption | Max. 2.2 W | |
| Camera | ||
| Image Sensor | 2MP CMOS | |
| Effective Pixels | 2.0MP | |
| Electronic Shutter Speed | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s | |
| Minimum Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| S/N Ratio | >62 dB | |
| IR Distance | 20m | |
| Lens | ||
| Lens Type | 3.6 mm | |
| Mount Type | M12 | |
| Angle of View | 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° | |
| Video | ||
| Resolution | 1920 x 1080 (2MP) | |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps | |
| Video Output | 1 HD analog output | |
| Day/Night | ICR | |
| BLC Mode | Yes | |
| Noise Reduction | 2D DNR | |
| Warranty | ||
| Warranty | 01 year warranty | |
